What is SphereView?
SphereView arranges any UIViews on the surface of a virtual sphere and makes the whole thing interactive: drag to spin it, flick it for momentum, pinch to zoom, and the frontmost item snaps into focus. The even, no-clumping distribution comes from a Fibonacci lattice; the 3D look is faked with nothing more than scale, alpha, and zPosition; and the rotation is a single quaternion, so it never gimbal-locks.
It’s open-sourced at github.com/DerNoah/swift-sphere-view (iOS 16+, Swift 6).
A sphere of icon chips — front items are large and opaque, back items shrink and fade.
The same sphere spinning. The lattice keeps the spacing even at every angle.
Install it with Swift Package Manager:
dependencies: [
.package(url: "https://github.com/DerNoah/swift-sphere-view", from: "1.0.0")
]
Then create the view and drop your items into its contentView — the gestures are wired up for you:
import SphereView
let sphere = SphereElementView(frame: CGRect(x: 0, y: 0, width: 320, height: 320))
view.addSubview(sphere)
for icon in icons { // any UIViews — chips, labels, images…
sphere.contentView.addSubview(icon)
}
sphere.refreshLayout() // lay them out on the sphere
The Fibonacci sphere
The hard part of “put N points on a sphere” is doing it evenly — a naïve latitude/longitude grid clumps badly at the poles. The Fibonacci lattice avoids that by walking up the sphere in equal-area z steps while spinning the azimuth by the golden angle each step:
private func fibonacciSphere(numberOfPoints: Int) -> [(x: Double, y: Double, z: Double)] {
let phi = (1.0 + sqrt(5.0)) / 2.0 // golden ratio
var points = [(x: Double, y: Double, z: Double)]()
for i in 0..<numberOfPoints {
let iDouble = Double(i)
let theta = acos(1 - 2 * (iDouble + 0.5) / Double(numberOfPoints)) // even z-bands
let phi_i = 2 * Double.pi * (iDouble / phi).truncatingRemainder(dividingBy: 1)
// Spherical coordinates to Cartesian
let x = sin(theta) * cos(phi_i)
let y = sin(theta) * sin(phi_i)
let z = cos(theta)
let rotated = globalRotation.act(simd_double3(x, y, z)) // apply the current rotation
points.append((x: rotated.x, y: rotated.y, z: rotated.z))
}
return points
}
The acos(1 - 2·(i+0.5)/N) term spaces the points uniformly in z (equal-area horizontal bands), and the golden-angle azimuth keeps successive points maximally spread — no seams, no pole clustering. Each unit vector is then rotated by the sphere’s current globalRotation quaternion, which is why the same function is called every time the view re-lays-out.

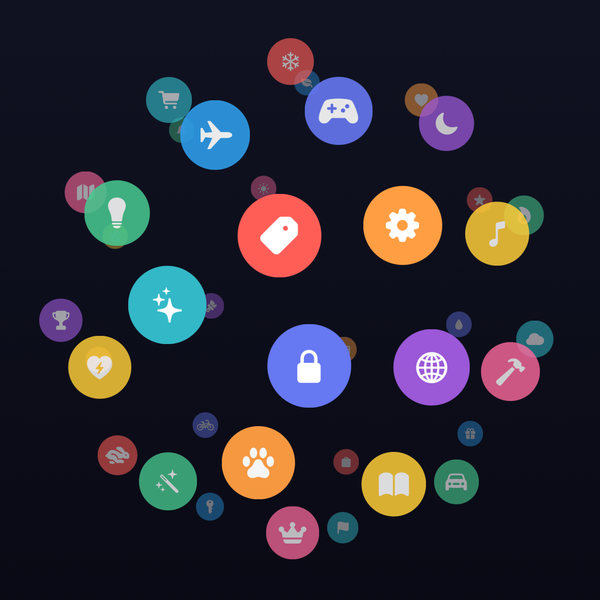

Forty icons, evenly spaced — no clumping anywhere on the surface.
Tumbling the sphere shows the spacing stays even from every direction.
Faking depth
There’s no SceneKit and no perspective division here — the projection is orthographic (x/y are just the point times the radius, centered). All the depth comes from three cheap per-item cues derived from z, where the front of the sphere is z = -1:
for (i, view) in subviews.reversed().enumerated() {
let x = (spherePositions[i].x * sphereRadius) + contentView.bounds.width / 2
let y = (spherePositions[i].y * sphereRadius) + contentView.bounds.height / 2
let transformedZ = max((1 - CGFloat(spherePositions[i].z)) / 2, 0.3) // 0.3 … 1.0
view.center = CGPoint(x: x, y: y)
view.transform = CGAffineTransform(scaleX: transformedZ, y: transformedZ) // front bigger
view.alpha = transformedZ + 0.1 // back fainter
view.layer.zPosition = transformedZ // front on top
}
transformedZ maps the front item (z = -1) to 1.0 and the back (z = +1) to a floor of 0.3. That single value drives the scale (front items render full-size, back items shrink to 30%), the alpha (back items fade out), and the zPosition (front items draw over the ones behind). Three lines, and a flat ring of views reads as a solid sphere.

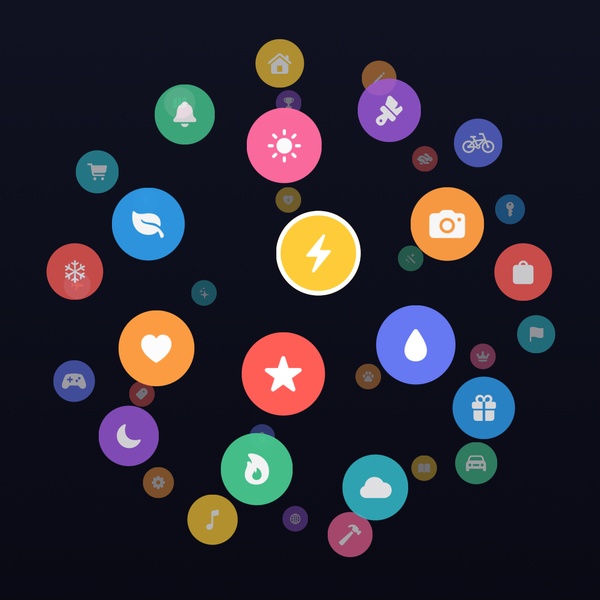

Scale + alpha + z-order: the front item is biggest and on top; the back ones shrink and fade.
As an item rotates to the front it grows and sharpens; rotating away, it shrinks and fades.
Pan to rotate
Dragging spins the sphere by composing a quaternion from the pan deltas — quaternions compose cleanly and never gimbal-lock, so you can keep tumbling in any direction forever:
private func rotateSphereWithGlobalAxes(globalRotation: simd_quatd, deltaX: Double, deltaY: Double,
sensitivity: Double = 0.01) -> simd_quatd {
let rotationX = deltaY * sensitivity
let rotationY = deltaX * sensitivity
let quaternionX = simd_quaternion(rotationX, simd_double3(1, 0, 0))
let quaternionY = simd_quaternion(rotationY, simd_double3(0, 1, 0))
let newRotation = quaternionY * quaternionX // rotate about the *global* axes
return simd_normalize(newRotation * globalRotation) // pre-multiply onto the running rotation
}
Each pan callback turns the horizontal/vertical drag into rotations about the global X and Y axes, pre-multiplies them onto the running globalRotation, and re-normalizes. Because the rotation lives in one quaternion (not Euler angles), there are no singularities — the controlling code just resets the gesture translation to zero each frame to avoid compounding the deltas.

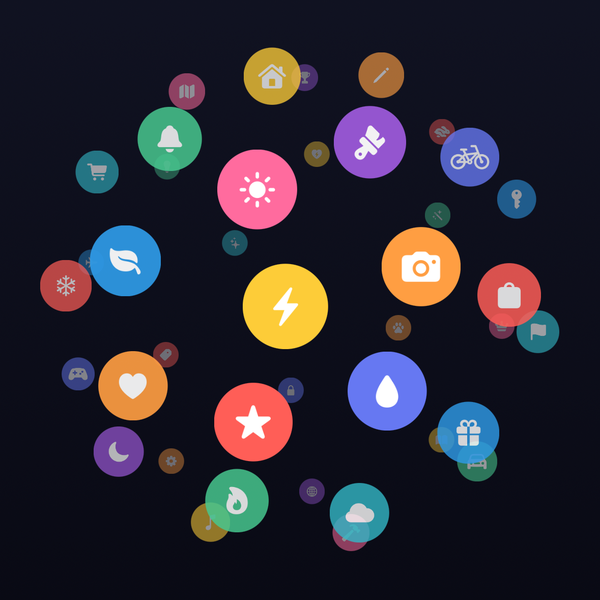

Drag in any direction to spin the sphere to a new orientation.
Free rotation about a tilted axis — no gimbal lock, no flipping.
Momentum & deceleration
Letting go after a flick doesn’t stop the sphere dead — it keeps spinning and eases to rest using a scroll-view-style deceleration curve, run as an async Task at ~60 fps, and then snaps the nearest item to the front:
let decelerationRate = UIScrollView.DecelerationRate.fast.rawValue
let decelerationMultiplier = decelerationRate / 1.03
var currentVelocity = CGPoint(x: velocity.x / 100, y: velocity.y / 100)
currentDecelerationTask = Task { @MainActor in
while abs(currentVelocity.x) > 0.1 || abs(currentVelocity.y) > 0.1 {
try await Task.sleep(nanoseconds: 16_000_000) // ~16 ms / frame
currentVelocity.x *= decelerationMultiplier
currentVelocity.y *= decelerationMultiplier
globalRotation = rotateSphereWithGlobalAxes(globalRotation: globalRotation,
deltaX: -Double(currentVelocity.x),
deltaY: Double(currentVelocity.y))
positionSubviews()
}
// …then snap the closest non-excluded item to front.
}
A flick only triggers momentum if the release velocity clears decelerationTolerance (default 80); below that it snaps immediately. Each frame multiplies the velocity by the decay factor and applies the same quaternion rotation as a drag, so the spin-down feels continuous with the gesture.

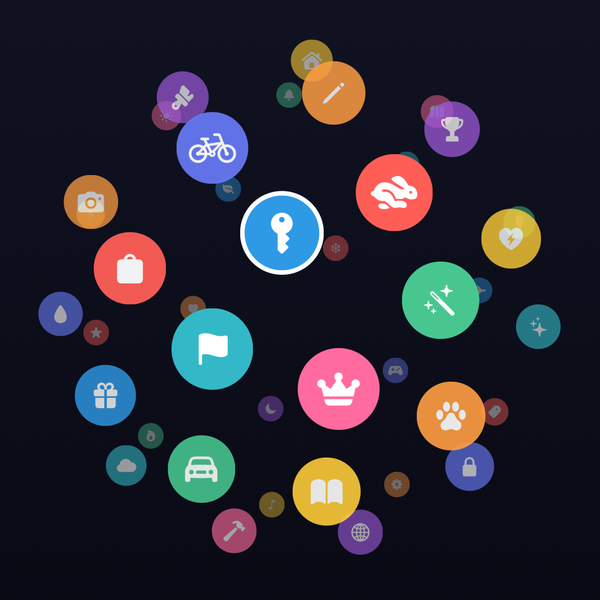

After a flick the sphere coasts, slows, and snaps the nearest item to the front (ringed).
Flick → coast → ease to rest → snap to the frontmost item.
Pinch to zoom
Zoom is the simplest piece: the pinch gesture writes straight to sphereRadius, and because that property re-lays-out on didSet, the sphere expands and contracts immediately:
open var sphereRadius: CGFloat { didSet { positionSubviews() } }
// in the pinch handler:
case .changed:
sphereRadius = sender.scale * lastPinchScale
Growing the radius pushes the items apart (and, via transformedZ, exaggerates the depth); shrinking it pulls them into a tight cluster. You can drive it programmatically too — resetZoom() snaps back to the default radius, and invalidateLayout() computes a radius that fits the average item size into the bounds.

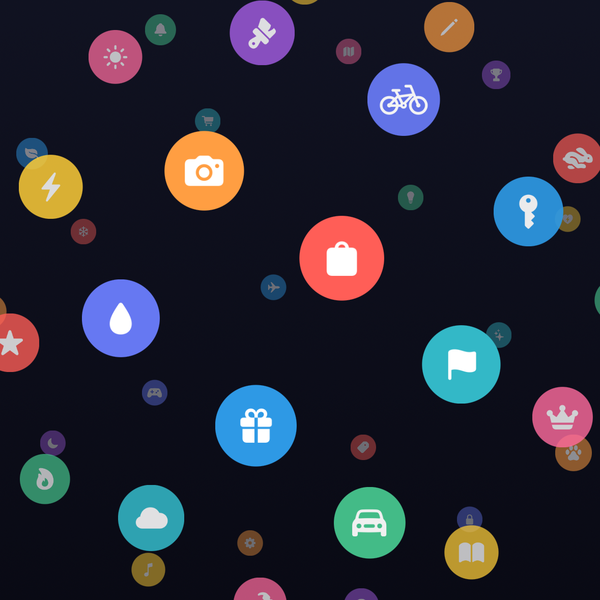

Pinch out to spread the items; pinch in to cluster them.
Driving sphereRadius in and out — instant relayout, no animation code needed.
Front-item focus & tap-to-select
The view always tracks which non-excluded item is frontmost (smallest z) and fires onFrontItemChanged when it changes — handy for updating a caption or highlighting the current item. Tapping a front-hemisphere item toggles its isSelected (if it’s a UIControl) and snaps it dead-center with a cubic-eased slerp:
sphere.onFrontItemChanged = {
// the frontmost item changed — update your UI
}
sphere.snapToFrontItem() // animate the nearest item to face the viewer
// Tag a view to keep it out of focus/snap (e.g. a center label):
backgroundLabel.tag = SphereElementView.excludedFromFocusTag
The snap is a 20-step interpolation between the current and target orientation (simd_slerp with an ease-out curve) that brings the chosen point to z = -1. Mark any decorative subview with excludedFromFocusTag and it’s skipped by focus tracking, snapping, and tap hit-testing.

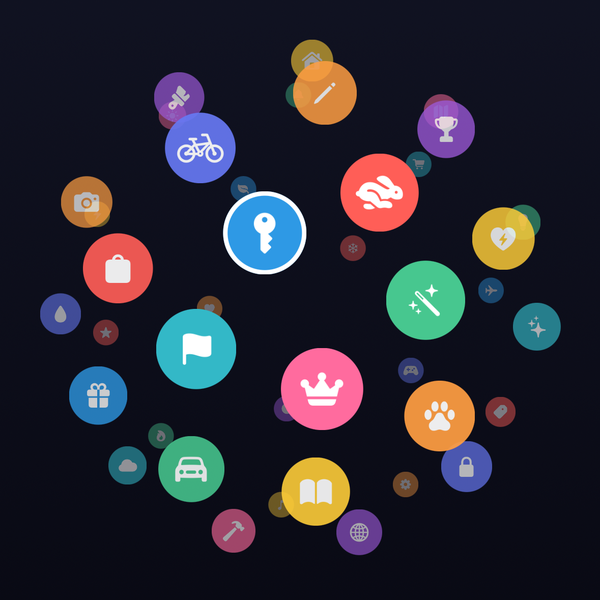

The frontmost item is tracked continuously — here it’s ringed as it faces the viewer.
onFrontItemChanged keeps the ring on whichever item is currently at the front.
Tips
| Tip | Why |
|---|---|
Add items to contentView, not the sphere |
Subviews of contentView are what get laid out on the lattice |
Call refreshLayout() after changing items |
It re-runs the positioning; the view doesn’t observe subview adds |
| Keep items uniformly sized | The depth cues (scale/alpha) read cleanest when every chip starts the same size |
Use excludedFromFocusTag for chrome |
A center label or backdrop stays put and out of focus/snap/hit-testing |
Reach for invalidateLayout() to auto-fit |
It picks a radius from the average item size so the sphere fills the bounds |
Observe onFrontItemChanged, don’t poll |
It only fires when the frontmost item actually changes |
Toggle isScrollEnabled / isPinchEnabled |
Disable a gesture when you want a display-only or zoom-only sphere |
The full source is a single, dependency-free file on GitHub: github.com/DerNoah/swift-sphere-view.
